40/40C-I Triple IR (IR3) – Available in Aluminium Only


40/40C-I Triple IR (IR3) – Available in Aluminium Only

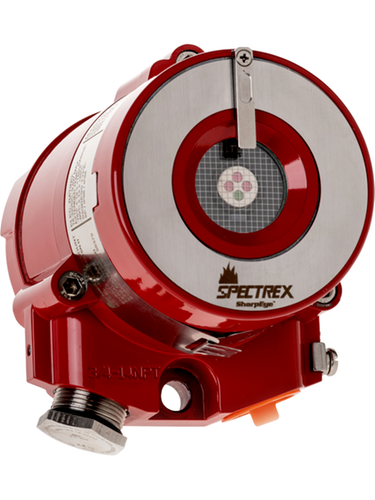

The SharpEye 40/40C-I, a multi spectrum Quad Sense IR flame detector, provides long distance detection of hydrocarbon fires at up to 215 ft. (65 m), fast detection in under five seconds.

Featuring wide operation temperature range in extreme weather conditions with strengthened reliability, the 40/40C-I is based on proven Triple-IR (IR3) technology, ensuring high sensitivity with superior immunity to false alarms.

Multi-Spectrum Quad-Sense flame detector – integrating four IR sensors to further improve differentiation of flame sources from non-flame background radiation.

Technical Data

  • Detects Hydrocarbon fires
  • Detection response time: less than 5 seconds
  • Sensitivity ranges: 5 sensitivity ranges
  • Temperature Range: -40oC to 75oC
  • Power Supply: 24VDC (18-32 VDC)
  • Heavy-duty copper free aluminum enclosure
  • SIL3 compatible
  • HART protocol for maintenance and asset management
  • RS-485 Modbus compatible
