TL;DR: Electromagnetic meters are reliable for dirty or high-volume flows. Ultrasonic meters work best with clean fluids and quick installs. Each serves a different role, and choosing wrong can cost you in data and downtime.
Summary: Electromagnetic and ultrasonic flow meters aren’t interchangeable. The best choice depends on your system’s conditions, accuracy needs, and future plans. Understanding those trade-offs is key to avoiding regret later.
Choosing a flow meter isn’t just about picking a sensor—it impacts long-term efficiency, operational costs, and the quality of data driving decisions. The stakes are high: the wrong meter can lead to inaccurate billing, increased downtime, or even undetected system faults.
Electromagnetic and ultrasonic flow meters are among today’s most discussed options. Each possesses distinct strengths, yet they are not always interchangeable. The real challenge lies in understanding which one precisely fits your system, budget, and long-term goals.
How They Work
Electromagnetic Flow Meters
Electromagnetic flow meters measure flow based on Faraday’s Law of Electromagnetic Induction. When a conductive fluid passes through a magnetic field inside the sensor, it creates a voltage. Electrodes positioned along the inner wall of the flow tube detect this voltage, and the system converts it into a digital flow reading. The accuracy of this method doesn’t rely on pressure, temperature, or fluid density, which makes it highly stable under varying operational conditions.
Ultrasonic Flow Meters
Ultrasonic flow meters calculate flow velocity by analysing the behaviour of high-frequency sound waves as they pass through or along a flowing fluid. There are two primary types:
- Transit-time models: These send ultrasonic pulses both upstream and downstream. The difference in travel time reveals the fluid’s velocity. They are highly accurate when used with clean, full-pipe conditions.
- Doppler models: Designed for fluids that contain suspended particles or air bubbles, they measure the change in frequency (Doppler effect) as sound waves reflect off particulates in the flow.

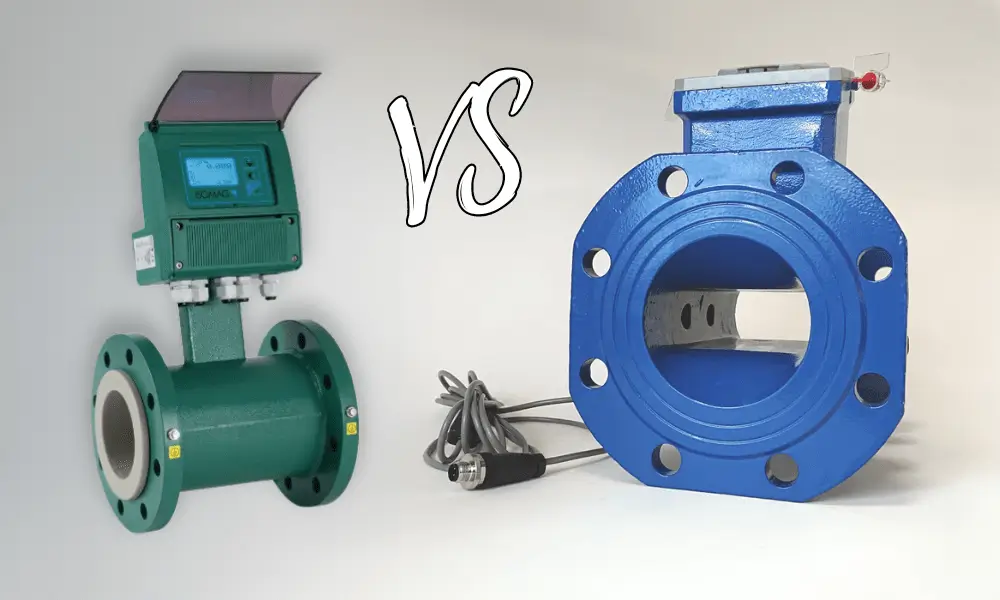

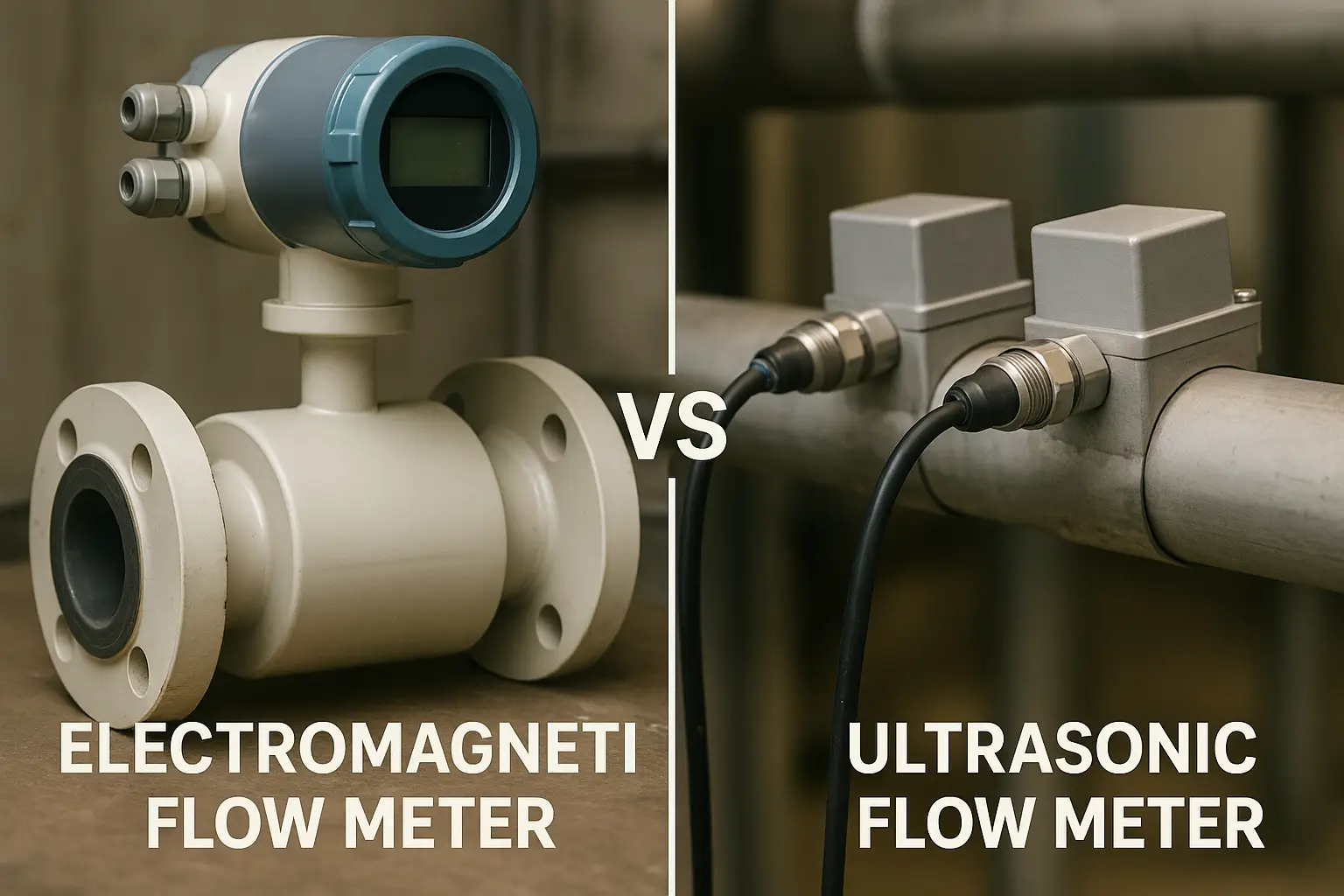

Electromagnetic vs. Ultrasonic Flow Meters: Key Benefits
Accuracy
- Electromagnetic: Delivers up to ±0.2% accuracy, maintaining consistent readings even in challenging conditions like dirty, high-viscosity, or chemically treated fluids.
- Ultrasonic: Highly accurate when used in clean, full-pipe systems with stable flow. Performance may drop if there are entrained air bubbles or solids, or if the installation environment is acoustically noisy.
- Winner: Electromagnetic for tough environments; Ultrasonic for clean, pressurised systems.
Installation
- Electromagnetic: Requires in-line installation and pipe modification during setup, but once operational, it demands minimal intervention and delivers consistent long-term performance.
- Ultrasonic: Clamp-on designs can be installed externally within minutes, without halting operations or altering the pipeline—making them perfect for retrofits, temporary setups, or facilities with restricted access.
- Winner: Ultrasonic for ease and flexibility.
Fluid Compatibility
- Electromagnetic: Only functions with conductive fluids such as water, wastewater, or certain slurries. Not suitable for oils or ultra-pure liquids.
- Ultrasonic: Compatible with a wide variety of fluids, including non-conductive substances like hydrocarbons and chemicals—offering a broader application range.
- Winner: Ultrasonic meters are more versatile.
Maintenance
- Electromagnetic: Features a robust design with no internal moving parts, which reduces wear and supports an extended service life—often exceeding 15 years.
- Ultrasonic: Also low-maintenance, especially clamp-on types, which never come into contact with the fluid, further reducing potential contamination and mechanical wear. For broader insights into equipment upkeep, read about Industrial Equipment Calibration and Maintenance.
- Winner: Tie—both require very little maintenance.
Cost of Ownership
- Electromagnetic: Typically involves a higher upfront investment due to in-line installation but delivers long-term value through reliable performance and low maintenance needs.
- Ultrasonic: Initial costs can be lower, especially for clamp-on models, though they may occasionally require recalibration depending on use and installation precision.
- Winner: It depends. Evaluate both CAPEX and OPEX for your system.

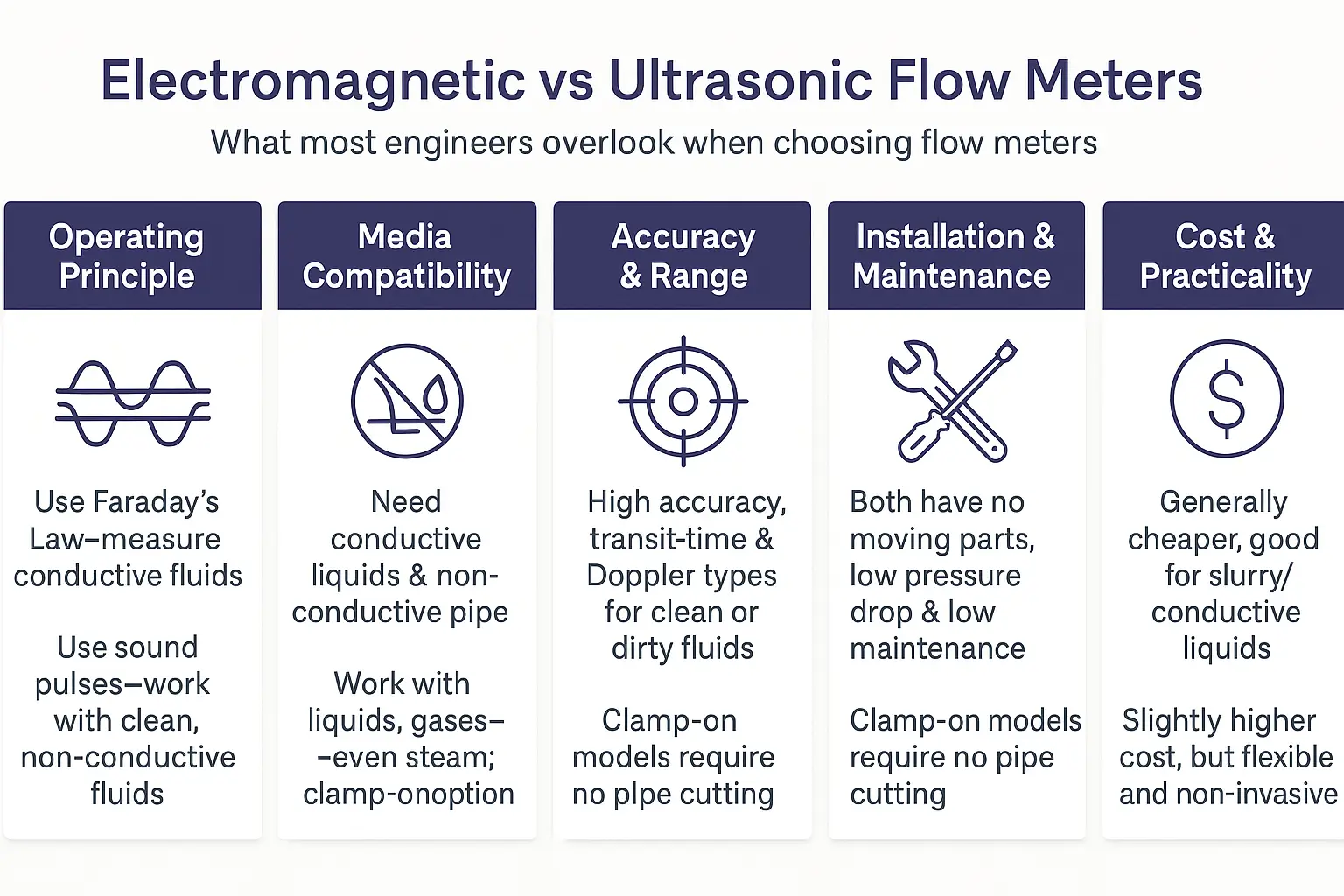

What Engineers Get Wrong When Choosing Flow Meters
Even engineers with years of field experience can make costly mistakes when selecting flow meters, often due to overlooking key technical or operational requirements. For essential selection criteria, refer to our Flow Meter Selection Guide.
1. Ignoring Pipe Conditions
A common oversight is neglecting critical pipe conditions. Some flow meters need ideal conditions to perform well. Electromagnetic meters, for instance, handle inconsistent flows and dirty fluids more effectively. Ultrasonic meters, especially transit-time types, need full pipes and clean, bubble-free fluids. Ignoring these requirements can lead to inaccurate readings.
2. Prioritising Upfront Cost
Prioritising only upfront cost can be a costly error. Cheaper meters may save money initially but often require more maintenance and frequent replacements. Meters like iPERL and Cordonel cost more upfront but deliver reliable performance and a lower total cost of ownership over time.
3. Overlooking Integration
Failing to consider future integration is another pitfall. Meters like iPERL and Cordonel are designed for AMR/AMI systems. Choosing a model without these features can limit future upgrades and reduce overall system efficiency.
4. Misjudging Future Needs
Underestimating future system needs can lead to early obsolescence. Systems grow. If your setup changes, a fixed meter may not adapt. Clamp-on models are easier to move or repurpose. Electromagnetic meters stay accurate long-term but require a stable installation. Plan for flexibility.
Best Use Cases
Each flow meter type is built for specific conditions. Understanding where each excels helps avoid errors and improves long-term reliability. Here’s how to make the right choice for your setup.
Use Electromagnetic Meters When:
- You need reliable metering in utilities or water networks: These systems require consistent, long-term performance in high-demand environments.
- The fluid is dirty or has particles (e.g., wastewater, slurries): Electromagnetic meters are unaffected by particulates or contaminants.
- Long-term deployments are expected: Ideal for fixed installations where the meter is expected to operate for a decade or more.
- Integration with SCADA or AMI is needed: These meters support advanced data communication and remote monitoring.
Use Ultrasonic Meters When:
- You need clamp-on, no-pipe-cut installations (KATflow): Clamp-on designs are perfect for quick installs and retrofits with no system interruption.
- You’re handling clean or potable water (Cordonel): These meters provide high accuracy in clean flow conditions.
- Portability or temporary audits are priorities: Portable models allow easy relocation for spot-checks and diagnostics.
- You require non-intrusive installation in high-traffic areas: No contact with fluid or disruption to operations makes them ideal for sensitive or critical locations.
Why Choose Minerva
Minerva Intra delivers reliable flow metering solutions tailored for Singapore’s infrastructure. Our team combines strong local support with access to proven international technologies, thereby ensuring accurate data, easier maintenance, and long-term system value.
Our Flow Meter Line-Up:
- iPERL: Electromagnetic smart water meter (DN15–DN40) with built-in communication and long-life battery. Ideal for utilities.
- Cordonel: Ultrasonic meter (DN40–DN300), perfect for high-accuracy industrial and commercial metering. Zero moving parts, integrated alerts.
- KATflow Series: Portable or fixed clamp-on ultrasonic meters. Covers pipes from 10 mm to 6,500 mm. Excellent for audits and quick diagnostics.
Local Strength
- Based in Singapore with field engineers and metering consultants.
- Proven results with government contracts and private developments.
- Experts in deploying and maintaining Sensus Xylem and Katronic systems.
Minerva doesn’t just deliver devices—we guide your metering strategy from selection through system integration and long-term support.
