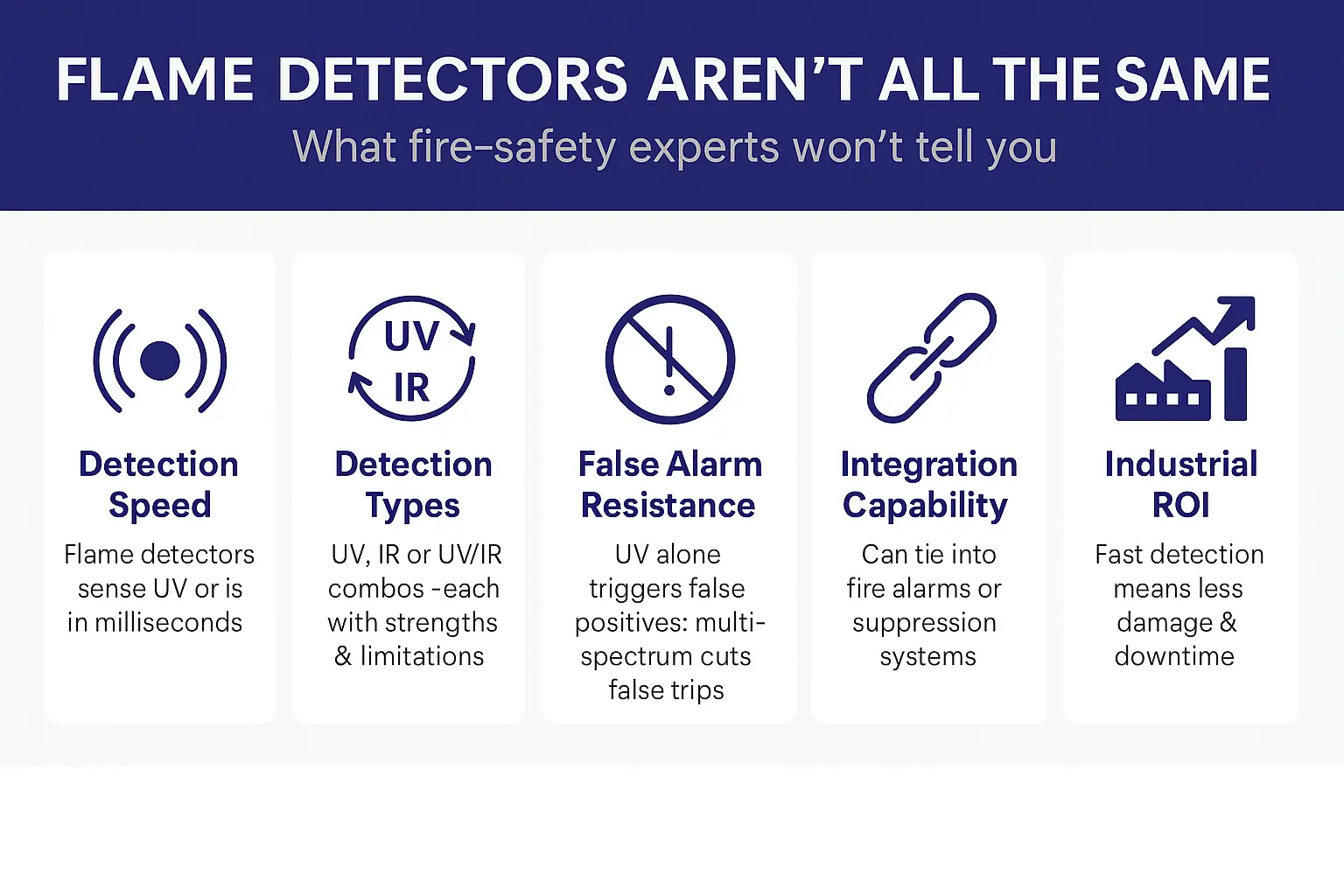

TL;DR: Flame detectors aren’t interchangeable. Each type—UV, IR, IR3, UV/IR—has specific applications. Using the wrong one risks false alarms, missed detection, and non-compliance. Choosing the right detector and partner matters.
Summary: Flame detectors play a vital role in early fire detection, especially in high-risk environments. Choosing the appropriate type based on fuel type, environmental conditions, and compliance requirements is essential for effective protection and operational safety.
Flame detectors are often misunderstood and underestimated. They aren’t just another component of your fire protection system; they’re the first line of defense in many high-risk environments. Yet, many sites still rely on sensors not designed for the specific conditions they’re exposed to.
Let’s break down what flame detectors truly are, why they matter, and the essential types you need to know—especially if your business operates in sectors like oil and gas, power generation, or manufacturing. If you’re responsible for fire safety and compliance, this guide is crucial for you.
What Is a Flame Detector?
A flame detector is a sensor engineered to rapidly detect and respond to the presence of flame or fire. These devices can trigger alarms, activate fire suppression systems, and alert operators immediately. They’re specifically designed for early detection in environments where fires can escalate in seconds.
Unlike smoke or heat detectors, flame detectors respond to the electromagnetic radiation emitted by flames, making them significantly faster and more reliable in hazardous environments.

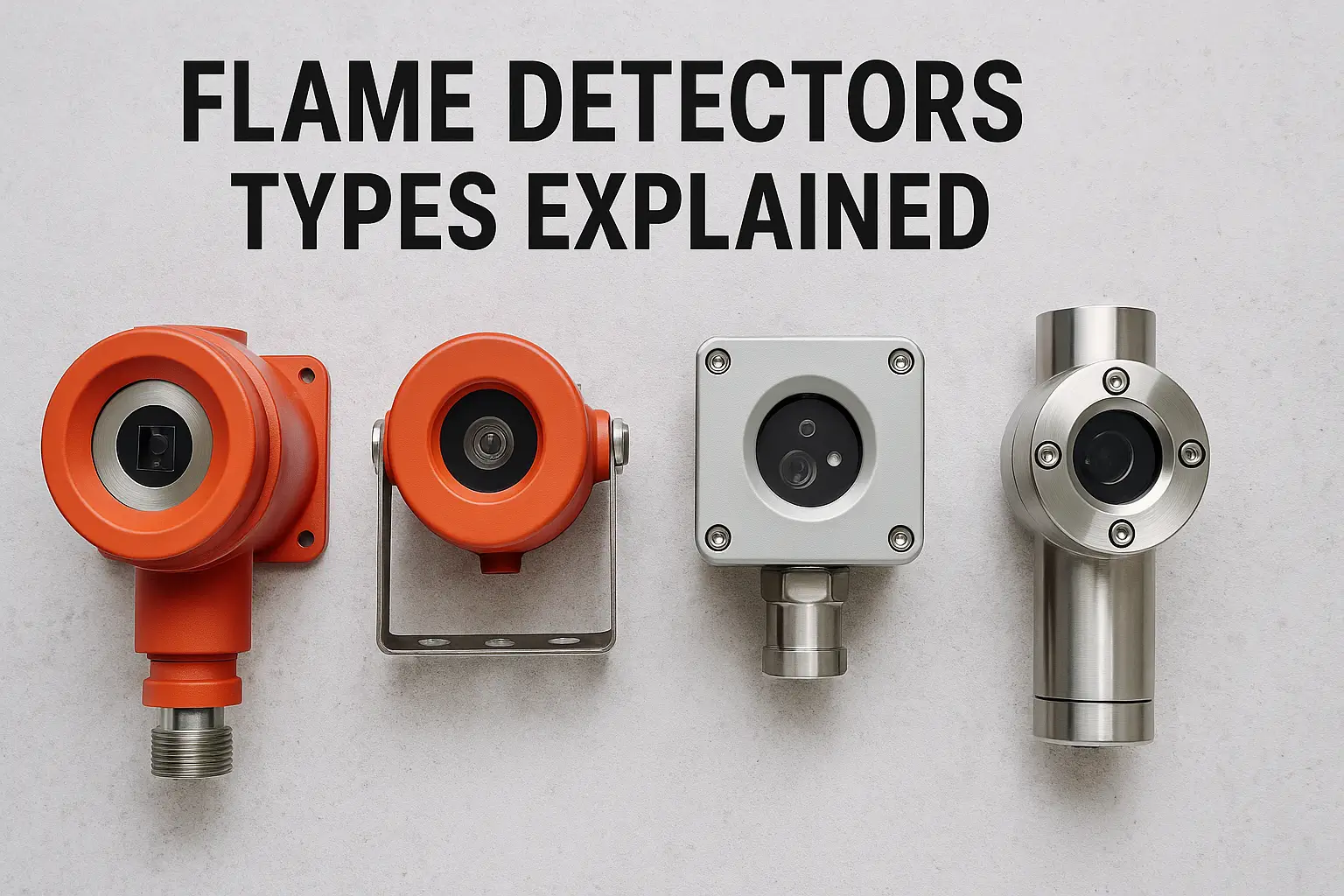

Different Types of Flame Detectors (And How to Choose)
Many decision-makers assume all flame detectors work the same way. But each type is designed for different risks and conditions. Choosing the wrong one can lead to false alarms, missed events, or non-compliance. Here’s a look at the key types and their use cases.
Ultraviolet (UV) Flame Detectors
These detectors sense ultraviolet radiation, a signature characteristic of flames, and are known for their rapid response times—typically under 5 milliseconds.
- Best For: Indoor applications with low UV interference, hydrocarbon and non-hydrocarbon fires, and areas with fast-igniting fuels.
- Limitations: Susceptible to false alarms from arc welding or lightning; can be blocked by smoke or dust.
Infrared (IR) Flame Detectors
IR detectors monitor specific infrared wavelengths emitted by flames and compare these against ambient conditions to identify a fire event.
- Best For: Environments with high smoke or steam, warehouses, gas turbines, and power plants.
- Limitations: Susceptible to false alarms from hot machinery or sunlight.
Dual IR (IR/IR) Flame Detectors
These use two infrared sensors operating at different wavelengths to better distinguish real flames from false positives, thereby improving detection accuracy.
- Best For: Industrial environments with a high risk of false positives, and outdoor or semi-enclosed areas.
- Limitations: Higher cost.
Triple IR (IR3) Flame Detectors
IR3 models use three separate infrared sensors to analyze flame flicker patterns, offering higher immunity to false alarms and superior long-range detection.
- Best For: High-risk and high-value areas like refineries, aircraft hangars, and petrochemical facilities.
- Advantages: Most resistant to false alarms, long-range detection.
UV/IR Flame Detectors
These detectors combine both UV and IR sensing technologies. A flame must trigger both spectrums simultaneously to activate an alarm, thereby significantly reducing false positives.
- Best For: Outdoor environments with sunlight and UV interference, and situations requiring false alarm immunity.
- Advantages: Good for areas with varying light conditions, lower false positives than UV or IR alone.
How to Select the Right Flame Detector
When selecting a flame detector, it’s important to understand that performance and reliability hinge on how well the detector aligns with your site’s unique conditions. Several key factors should guide your decision:
- Type of fuel: The presence of hydrocarbon versus non-hydrocarbon fuels directly impacts the type of radiation emitted during combustion, thus influencing detector sensitivity and suitability.
- Environmental conditions: Factors such as humidity, airborne dust, vapor, or exposure to direct sunlight can interfere with certain detection technologies, making it critical to choose a detector specifically designed for these challenges.
- Installation location: Whether the detector will be mounted indoors, outdoors, or in a hazardous zone influences requirements for weatherproofing, explosion protection, and optimal field of view.
- Compliance: Industry and site-specific standards such as ATEX, IECEx, FM, and SIL ratings provide assurance that the equipment has passed rigorous testing and is approved for use in your high-risk environment.
Common Mistakes in Flame Detector Deployment
- Wrong Type for the Application: Flame detectors must match the risks and conditions of their environment. Using UV detectors in outdoor settings with direct sunlight, for example, often leads to false alarms. Selecting the right type ensures accurate detection and reduces disruptions.
- Poor Placement: Detectors need a clear view of the area they’re meant to monitor. If obstructed by structural elements or equipment, their effectiveness drops. Correct positioning is just as important as the technology itself.
- Ignoring Maintenance: Over time, dirt or residue can affect a detector’s performance. Routine inspection and cleaning help prevent faults and ensure the system remains dependable when it’s needed most. For more on this critical topic, understand why regular calibration and maintenance are vital to avoid downtime disasters.
- Not Integrating with Other Systems: Flame detectors work best when linked with fire suppression, alarm, and shutdown systems. Without integration, critical delays in response can occur—limiting the value of your safety investment.
Regulatory and Industry Standards to Follow
Flame detection systems must adhere to strict regulatory standards that vary by industry and location. These codes help ensure that your detection equipment functions reliably under the most demanding conditions:
- IEC 61508 / SIL Rating: This standard defines safety integrity levels (SIL) for electrical and electronic systems used in hazardous environments. It serves as a benchmark for reliability and risk reduction.
- NFPA 72 (National Fire Alarm and Signaling Code): This code covers installation, performance, and maintenance requirements for fire detection and alarm systems and is often adopted internationally.
- ATEX and IECEx: These directives provide essential guidelines for equipment used in explosive atmospheres, ensuring flame detectors are safe for use in classified hazardous zones.
